Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Product |

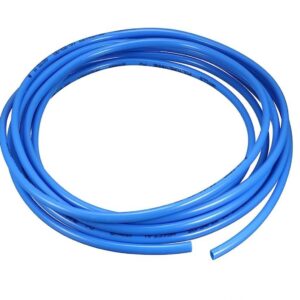

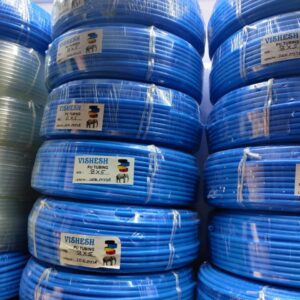

Blue PU (polyurethane) pneumatic pipe |
| Sizes available (outside diameter) |
6 mm, 8 mm, 10 mm, 12 mm, 16 mm |
| Colour |
Blue |
| Medium |
Compressed air |
| Connection |
Push-in pneumatic fittings of the same size |
| Uses |
Air lines to valves, cylinders, manifolds and air tools |
-
Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Product |
Clear PU (polyurethane) pneumatic pipe |
| Sizes available (outside diameter) |
6 mm, 8 mm, 10 mm, 12 mm, 16 mm |
| Colour |
Clear (transparent) |
| Medium |
Compressed air |
| Connection |
Push-in pneumatic fittings of the same size |
| Uses |
Air lines to valves, cylinders, manifolds and air tools |
-
Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Type |
Push-in pneumatic fitting |
| Function |
Connects air tubing to valves, cylinders, tools and other fittings |
| Seal |
Internal O-ring around the tube |
| Grip |
Internal collet with a release collar |
| Medium |
Compressed air |
| Uses |
Air lines, valves, cylinders, manifolds and air tools |
-
Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Type |

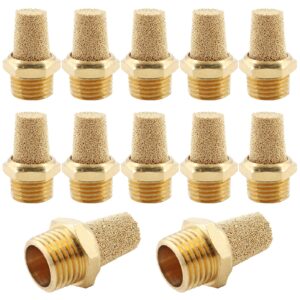

Pneumatic exhaust silencer (muffler) |
| Function |
Reduces exhaust noise and keeps dirt out of exhaust ports |
| Fitting |
Male thread that screws into the exhaust port |
| Medium |
Compressed air |
| Uses |
Solenoid valves, air cylinders, manifolds, air tools and blow-off points |
-
Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Type |
Push-in 90° elbow (tube to tube) |
| Sizes available (tube OD) |
6 mm, 8 mm, 10 mm, 12 mm, 16 mm |
| Connection |
Push-in on both ends, with release collar |
| Seal |
Internal O-ring around the tube |
| Medium |
Compressed air |
| Works with |
PU tubing of the same size |
-
Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Type |
Push-in male tee (two tube ports and one male thread) |
| Tube sizes available (OD) |
6 mm, 8 mm, 10 mm, 12 mm, 16 mm |
| Tube connection |
Push-in ports with release collars |
| Port connection |
Male thread that screws into a female port |
| Seal |
Internal O-rings around each tube |
| Medium |
Compressed air |
-
Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Type |

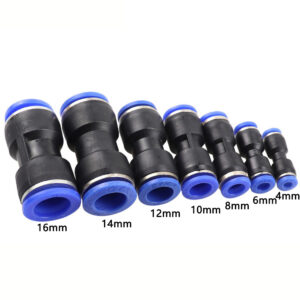

Push-in straight union connector (tube to tube) |
| Sizes available (tube OD) |
6 mm, 8 mm, 10 mm, 12 mm, 16 mm |
| Connection |
Push-in on both ends, with release collars |
| Seal |
Internal O-rings around each tube |
| Medium |
Compressed air |
| Works with |
PU tubing of the same size |
-
Pneumatic Fittings
Technical Specifications
| Property |
Value |
| Type |

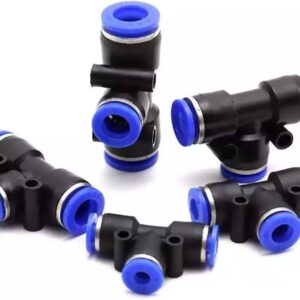

Push-in equal tee (tube to tube to tube) |
| Sizes available (tube OD) |
6 mm, 8 mm, 10 mm, 12 mm, 16 mm |
| Ports |
Three push-in ports of the same size, with release collars |
| Seal |
Internal O-rings around each tube |
| Medium |
Compressed air |
| Works with |
PU tubing of the same size |
