Burner Capacitor for Oil & Diesel Burners | Wisdo Merchants

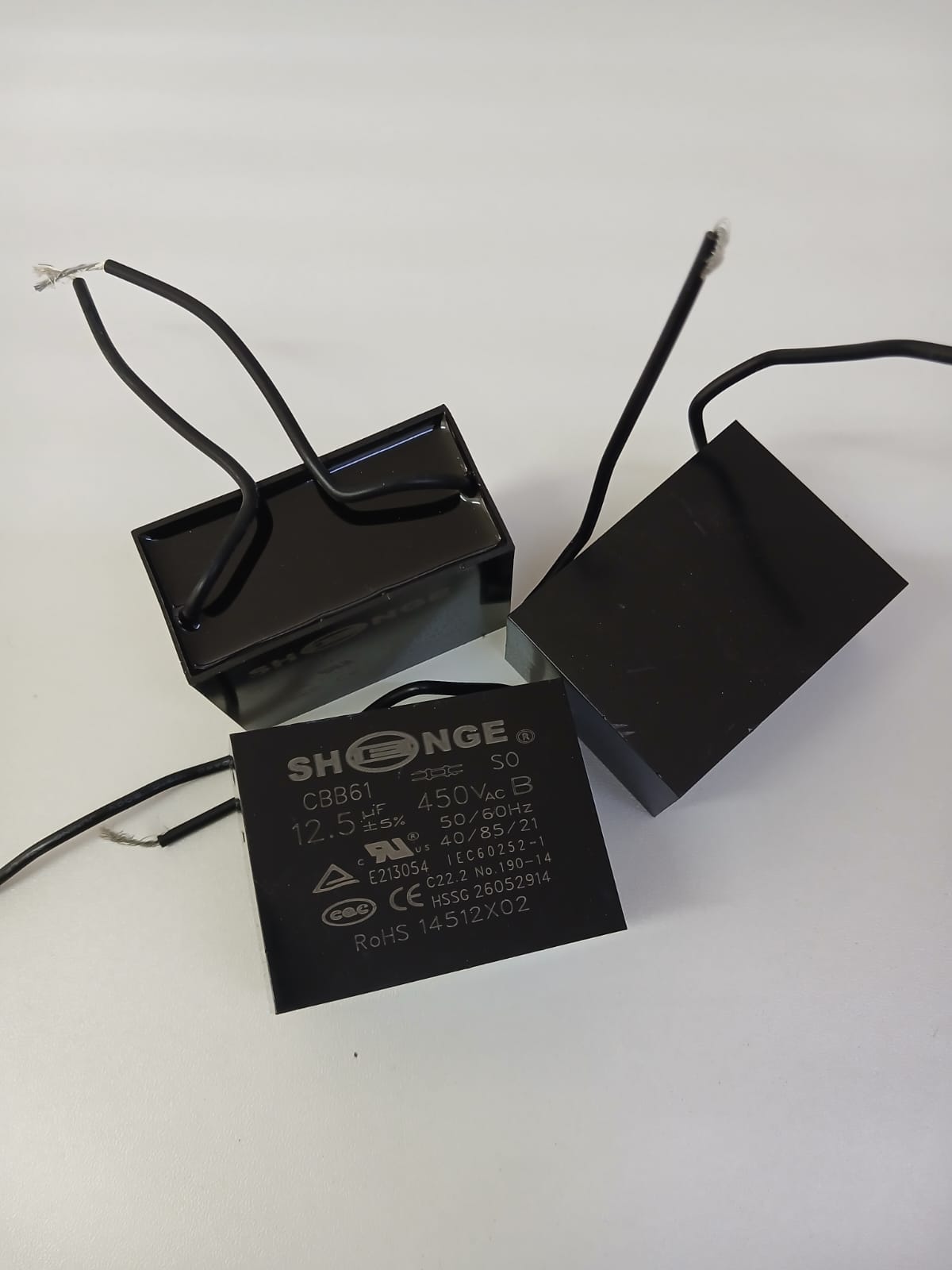

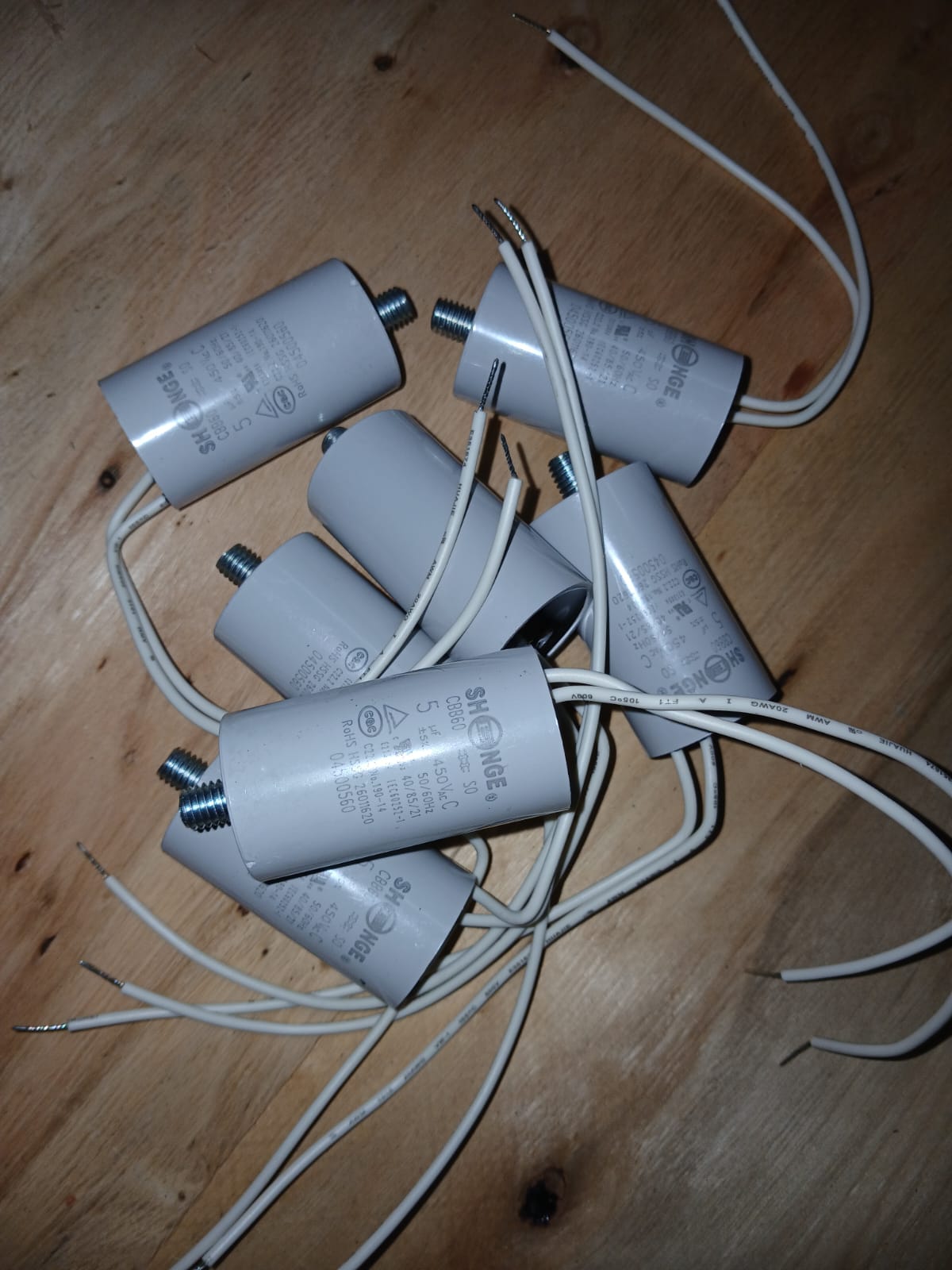

Burner Capacitor for Oil and Diesel Burner Motors

A burner capacitor helps the burner motor start and run smoothly. Most oil and diesel burners use a single-phase motor to drive the combustion fan and fuel pump. That motor needs a motor capacitor to create the push that turns it. When the capacitor weakens, the motor hums, starts slowly or stops altogether. At Wisdo Merchants in Nairobi, we supply burner capacitors to boiler technicians, bakeries, hotels and maintenance teams across Kenya.

Why the Burner Capacitor Matters

A single-phase motor cannot start turning on its own. The capacitor shifts part of the electrical current so the motor gets a rotating push at start-up. It then keeps the motor running efficiently.

Capacitors wear out over time, however, especially in hot boiler rooms. As their capacity drops, the motor struggles. The fan turns too slowly, so the burner gets too little air and the fuel pump builds too little pressure. As a result, you may see smoky combustion, failed starts and lockouts (safety shutdowns). Replacing a weak capacitor is a quick, low-cost repair that often brings the burner back to life.

Burner Capacitor Features and Benefits

• Reliable motor start: A healthy capacitor gives the motor a strong start every time the burner fires.
• Steady running: The fan and fuel pump run at the right speed, so the flame stays clean and stable.
• Protects the motor: A correctly rated capacitor stops the motor overheating as it struggles to turn.
• Fewer breakdowns: Fixing a weak capacitor early prevents lockouts and emergency call-outs.
• Easy to fit: Most burner capacitors clip or screw onto the burner body with simple wire connections.

Technical Overview

Capacitance is measured in microfarads (µF). Always replace a capacitor with one of the same µF value and an equal or higher voltage rating. Send us a photo of the old capacitor’s label, and we will confirm the right match.

Burner Capacitor Applications and How to Replace It

Our burner capacitors suit burners used for:

• Steam and hot water boilers in hotels, hospitals, schools and factories
• Bakery ovens and commercial kitchens
• Dryers, laundries and process heating plants
• Diesel burners such as the Riello G10 burner and similar models

For example, a hotel boiler whose burner hums but fails to spin up in the morning often has a weak capacitor. Replacing it usually gets the burner running again within minutes.

How to replace the capacitor:

1. First, switch off and isolate the power supply to the burner.
2. Next, wait a few minutes, because a capacitor can hold a charge after power is removed.
3. Then note the wiring, disconnect the old capacitor and remove it from its mounting.
4. After that, fit the new capacitor with the same µF rating and reconnect the wires exactly as before.
5. Finally, restore power and check that the motor starts quickly and runs smoothly.

If a new capacitor does not fix the problem, the motor itself may be worn. In that case, check the motor and the burner control box.

Safety and Handling

Always isolate the burner’s power before touching the capacitor or motor wiring. Capacitors can store an electrical charge even after the power is off, so wait before handling one. Never touch the capacitor terminals with bare hands.

Replace any capacitor that is bulging, leaking, cracked or burnt. Use only a capacitor with the correct µF value and voltage rating for your motor. If you are not confident with electrical work, ask a qualified technician to fit it.

Frequently Asked Questions

How do I know my burner capacitor is faulty?
Common signs include a motor that hums but does not turn, slow starts, overheating and frequent lockouts. A bulging or leaking capacitor body is also a clear warning sign.

Can I use a capacitor with a different µF value?
No. A different value can make the motor start poorly or overheat. Instead, match the µF value printed on the old capacitor.

Can I use a higher voltage rating?
Yes. A capacitor with an equal or higher voltage rating is safe, as long as the µF value matches.

Which capacitor fits my burner?
It depends on the motor. Send us a photo of the old capacitor or your burner model, and we will confirm the correct part.

Order a Burner Capacitor in Nairobi

Keep your burner motor starting strong. Wisdo Merchants supplies burner spares from Dar es Salaam Road, off Enterprise Road, Industrial Area, Nairobi. Confirmed orders are delivered the same day, subject to stock availability. Call +254 795 938305 or email sales@wisdomerchants.com for a quote.
