Burner Motor for Oil and Diesel Burners

The motor does the heavy lifting in an oil burner. One shaft spins the combustion fan, and the same shaft drives the fuel pump through a coupling. When the motor weakens, both suffer at once. The fan pushes too little air, the pump delivers low pressure, and the flame turns smoky and unstable. Eventually the burner locks out or won’t start. A new burner motor restores full airflow and fuel pressure. At Wisdo Merchants, we supply burner motors to boiler technicians, bakeries, hotels, laundries and factories across Nairobi and Kenya.

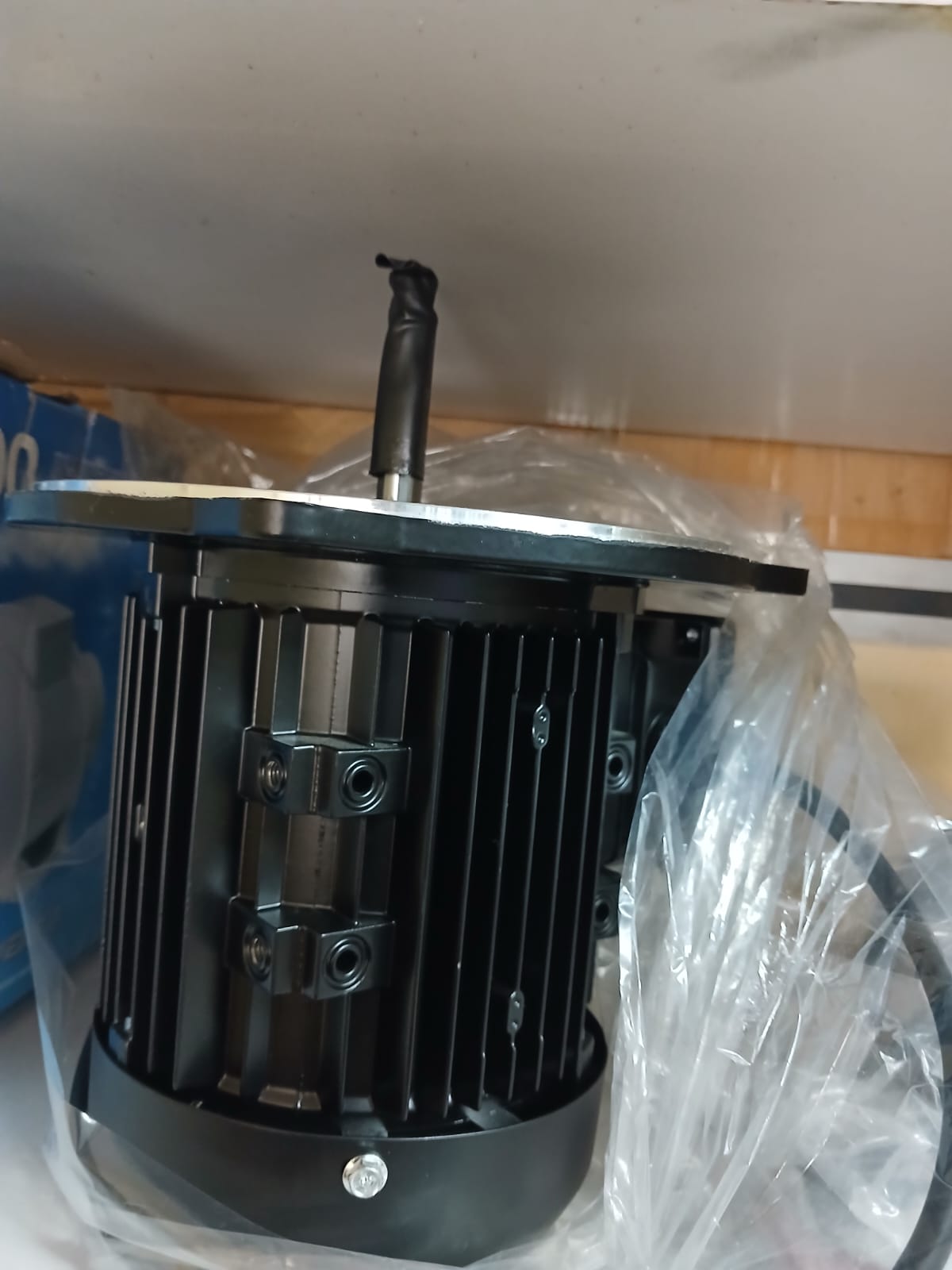

A burner motor is a compact electric motor built for continuous, reliable running. Most are single-phase motors with a capacitor to help them start. When the control box calls for heat, the motor starts first. It purges the combustion chamber with fresh air, then keeps the fan and pump running at steady speed for as long as the burner fires.

Features and Benefits of the Burner Motor

• Drives fan and pump together. One motor supplies both the combustion air and the fuel pressure.
• Steady speed. Constant speed keeps the air-to-fuel balance right for a clean flame.
• Restores burner performance. It cures low airflow, poor pump pressure and smoky combustion caused by a worn motor.
• Quieter running. A new motor ends the noise and vibration of worn bearings.
• Fewer lockouts. Reliable starts mean fewer failed purges and repeat callouts.

For technicians, this means a clear fix for tired burners. Meanwhile, owners get clean, efficient heat and lower fuel use.

Technical Specifications

Applications of the Burner Motor and How to Use It

• Replacing worn, noisy or seized burner motors
• Fixing no-start, slow-start and low-airflow faults
• Boilers in hotels, hospitals, schools and laundries
• Bakery ovens, dryers and air heaters
• Burner overhauls and keeping a spare for critical sites

Replacing a Worn Burner Motor

Picture a technician called to a laundry boiler whose burner hums but struggles to start. First, they switch off and isolate the power, then check the capacitor, since a failed capacitor often causes this fault. Next, with the capacitor confirmed good, they note the wiring and remove the fan wheel and pump coupling. After that, they fit the new burner motor, refit the fan wheel and coupling, and reconnect the wiring exactly as before. Finally, they restore power, check that the motor turns in the right direction, and fire the burner to confirm clean combustion.

Parts That Work with the Motor

The motor drives the fuel pump, so a tired pump makes a new motor work harder. Check pump pressure and fit our Suntec AS47 and AS67 pumps if needed. The control box starts the motor, so replace a faulty unit with our Sudick LMO24.111C2 burner controller. For a strong light-up after the purge, fit our XTSF-10 2 × 5 kV transformer.

Safety and Handling

• Isolate the power first. Switch off and isolate before touching the motor or its wiring.
• Watch the capacitor. A capacitor can hold a charge after power-off, so discharge it safely before handling.
• Keep fingers clear. The fan wheel can start without warning when the burner calls for heat.
• Check rotation. The motor must turn in the correct direction for the fan and pump to work.
• Use a qualified technician. Burner motors are part of the firing sequence and must be wired correctly.

Frequently Asked Questions

How do I know the burner motor is failing?

Common signs are humming without starting, slow starts, loud bearings, overheating, low airflow and a smoky flame. The burner may also lock out during the purge.

Could it be the capacitor and not the motor?

Yes. A failed capacitor often makes the motor hum but not start. Test or replace the capacitor first, since it’s cheaper than a motor.

Will any motor fit my burner?

No. Motors vary in power, speed, shaft size, flange and rotation. Bring your old motor or send us a photo of its rating plate, and we’ll match it.

Does the motor drive the fuel pump too?

Yes. On most oil burners, the same motor shaft drives both the fan and the fuel pump through a coupling.

Do you deliver outside Nairobi?

We offer same-day delivery once your order is confirmed, subject to stock availability. Call or email our sales team to confirm stock and arrange delivery to your site.

Order a Burner Motor from Wisdo Merchants

A strong motor means good airflow, steady fuel pressure and a clean flame. Our burner motor brings tired burners back to full performance. Furthermore, you can browse our burners range for burners and spares.
