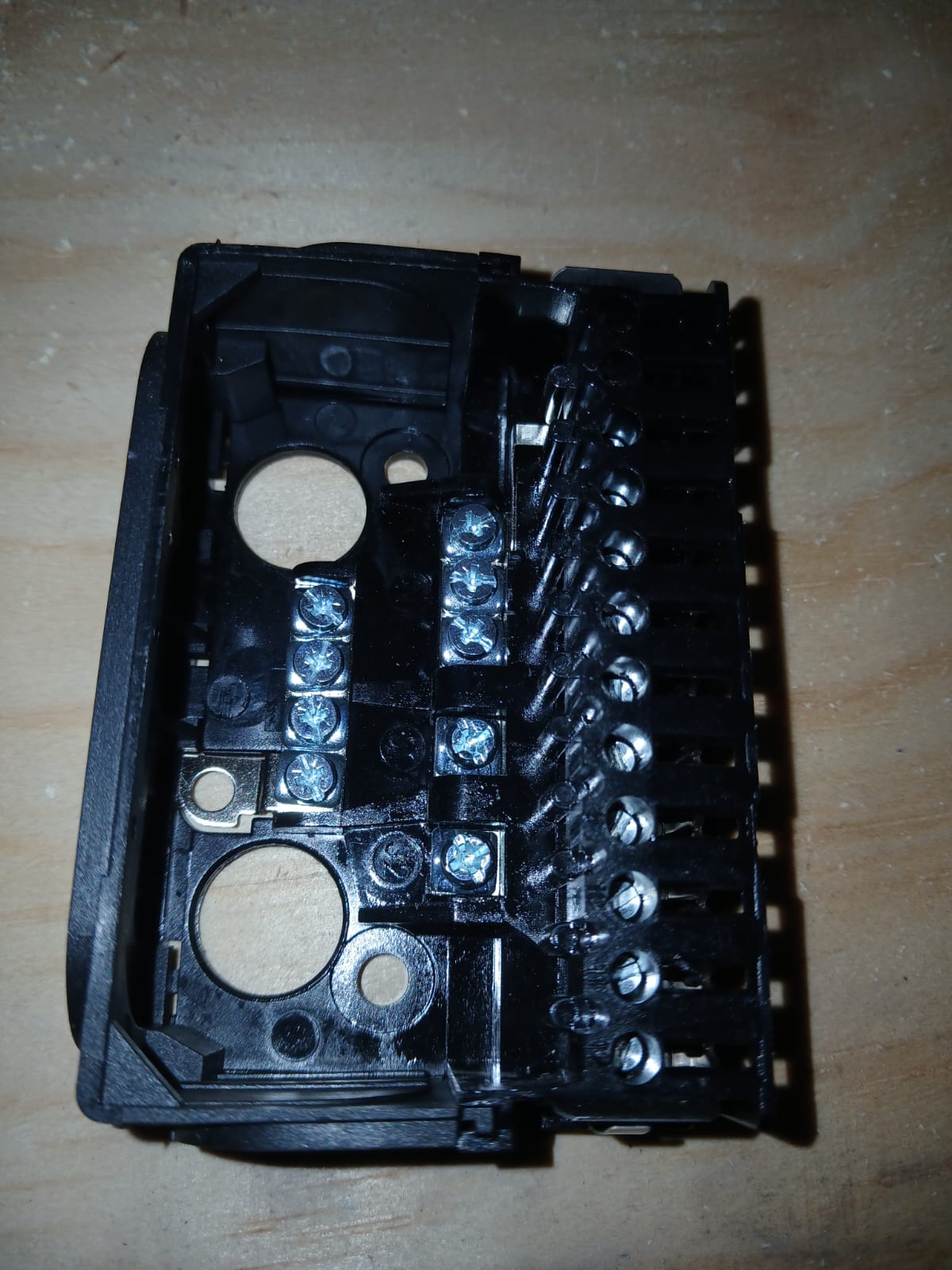

Burner Control Box Base for Oil and Diesel Burners

On most oil burners, the control box doesn’t wire straight into the burner. Instead, it plugs into a base that stays wired in permanently. Over time, that base can crack, burn, corrode or loosen its terminals. The result is poor contacts, random lockouts and a burner that won’t start, even with a good control box fitted. A new burner control box base restores solid, safe connections. At Wisdo Merchants, we supply control box bases to boiler technicians, bakeries, hotels, laundries and factories across Nairobi and Kenya.

An oil burner uses its control box to run each firing in the right order: motor, ignition, fuel valve and flame check. The base links that control box to everything else. The power supply, motor, ignition transformer, fuel solenoid and flame sensor all wire into its terminals. As a result, you can swap the control box in seconds without disturbing the wiring.

Features and Benefits of the Burner Control Box Base

• Quick control box changes. The control box plugs straight in, so you swap it without rewiring.
• Secure connections. Firm terminals end loose contacts that cause random lockouts.
• Fewer wiring errors. The wiring stays in place, which reduces mistakes during servicing.
• Restores reliability. It replaces cracked, burnt or corroded bases that cause faults.
• Low-cost repair. A new base often fixes a fault without replacing the whole control box.

For technicians, this means faster fault-finding and quicker repairs. Meanwhile, owners get a burner that starts reliably every time.

Technical Specifications

Applications of the Burner Control Box Base and How to Use It

• Replacing cracked, burnt or corroded bases
• Fixing loose-contact faults and random lockouts
• Rebuilding burner wiring after damage or rewiring
• Servicing burners on boilers, ovens and dryers
• Keeping a spare for fast repairs on critical burners

Replacing a Faulty Control Box Base

Picture a technician called to a bakery whose oven burner locks out at random. First, they switch off and isolate the power, then unplug the control box from its base. Next, they find scorched terminals and a cracked base, and label each wire before disconnecting it. After that, they fit the new base and reconnect every wire to its matching terminal, exactly as labelled. Finally, they plug the control box back in, restore power and fire the burner several times to confirm it starts cleanly.

Other Burner Spares to Check

While the burner is open, check the other parts that cause lockouts. Low fuel pressure often comes from a worn pump, which our Suntec AS47 and AS67 pumps replace. Cracked fuel lines let air in, so swap them for our braided hose for burner fuel lines. On boilers, an accurate stainless steel PT100 boiler sensor keeps the burner firing at the right temperature.

Safety and Handling

• Isolate the power first. The base carries mains voltage, so switch off and isolate before touching it.
• Label every wire. Mark each wire before disconnecting, and reconnect exactly as before.
• Use the right base. Bases are made for specific control box families, so match the base to your control box.
• Tighten terminals firmly. Loose terminals overheat and cause faults.
• Use a qualified technician. Burner wiring controls fuel and flame safety, so it must be done correctly.

Frequently Asked Questions

How do I know the base is faulty and not the control box?

Look for scorch marks, cracks, corrosion or loose terminals on the base. If a known-good control box still locks out on the same base, the base is likely the cause.

Will any base fit my control box?

No. Each control box family uses its own base. Bring your old base or control box, or send us a photo of its label, and we’ll match it. Need the control box too? See our Sudick LMO24.111C2 burner controller.

Do I need to rewire the burner?

Only the base connections. Label each wire, move it to the same terminal on the new base, and the rest of the burner wiring stays as it is.

Can a faulty base cause lockouts?

Yes. Poor contacts can interrupt the flame sensor or fuel valve signals, which makes the control box lock out.

Do you deliver outside Nairobi?

We offer same-day delivery once your order is confirmed, subject to stock availability. Call or email our sales team to confirm stock and arrange delivery to your site.

Order a Burner Control Box Base from Wisdo Merchants

Solid connections mean a burner that starts every time. Our burner control box base gives your control box a secure, reliable home. Furthermore, you can browse our burners range for burners and spares.
